Indoor Fixed Frame series
Product parameters

1, the effect of excellence: the use of dynamic scanning technology, stable picture, no miscellaneous points, the image effect is clear, animation effects vivid and diverse, video effects smooth and realistic;
2, rich content: can display text, graphics, images, animation, video information;
3, the way is flexible: users can arbitrarily display the display mode;
4, large amount of information: the information displayed is unrestricted;
5, the angle of view is excellent: in the horizontal and vertical are larger viewing angle, which is horizontal, wide and height gap is suitable for the environment;
6, the reliability is strong: the use of distributed scanning technology and modular design technology, reliability and stability is higher;
7, quality assurance: the use of imported light-emitting materials, high-quality IC chip, noise free high-power power supply, tensile shock, 10 years long life;
8 、 convenient maintenance: modular design, easy installation and maintenance.

Product information

Item P2.0 P2.5 P3 P4 P5
Pixel Pitch 2mm 2.5mm 3mm 4mm 5mm
Pixel Configuration 1R1G1B 1R1G1B 1R1G1B 1R1G1B 1R1G1B
LED Encapsulation SMD1010 SMD2121 SMD2121 SMD2121 SMD3528
Pixel Density 250000dot/㎡ 160000dot/㎡ 111111dot/㎡ 62500dot/㎡ 40000dot/㎡
Module Resoulution 64*64(W*H) 64*64(W*H) 64*64(W*H) 64*32(W*H) 64*32(W*H)
Module Size 128mm*128mm(W*H) 160mm*160mm(W*H) 192mm*192mm(W*H) 256mm*128mm(W*H) 320mm*160mm(W*H)
Drive Mode 1/32 Scan 1/16,1/32Scan 1/16 Scan 1/16 Scan 1/16 Scan
Cabinet Resolution 256*256(W*H) 192*192(W*H) 192*192(W*H) 128*128(W*H) 256*128(W*H)
Cabinet Size(W*H*D)/mm 512*512*66 480*480*66 576*576*66 512*512*66 640*640*66
Cabinet Weight 4.6±0.5kg 4.6±0.5kg 5.8±0.5kg 5.8±0.5kg 5.8±0.5kg
Brightness ≥1000CD/㎡ ≥1000CD/㎡ ≥1000CD/㎡ ≥1000CD/㎡ ≥1000CD/㎡
Color Temperature 3200-9300K/Adjustable 3200-9300K/Adjustable 3200-9300K/Adjustable 3200-9300K/Adjustable 3200-9300K/Adjustable
Max Power Consumption 750W/㎡ 750W/㎡ 750W/㎡ 750W/㎡ 750W/㎡
Average Power Consumption 250W/㎡ 250W/㎡ 250W/㎡ 250W/㎡ 250W/㎡
Viewing Angle H:160°V:160° H:160°V:160° H:160°V:160° H:160°V:160° H:160°V:160°
Refresh Rate ≥1920Hz ≥1920Hz ≥1200Hz ≥1200Hz ≥1200Hz
Grey Scale 16384 16384 4k 4k 4k
Best Viewing Distance ≥2m ≥3m ≥3m ≥4m ≥5m
Protection Level IP20 IP20 IP20 IP20 IP20
Maintain Style Maintain Maintain Maintain Maintain Maintain
Operating Voltage AC220V/110V AC220V/110V AC220V/110V AC220V/110V AC220V/110V
Working Temperature -20℃/+50℃ -20℃/+50℃ -20℃/+50℃ -20℃/+50℃ -20℃/+50℃
Operating Humidity 10%-85% 10%-85% 10%-85% 10%-85% 10%-85%
Lifetime 100000H 100000H 100000H 100000H 100000H

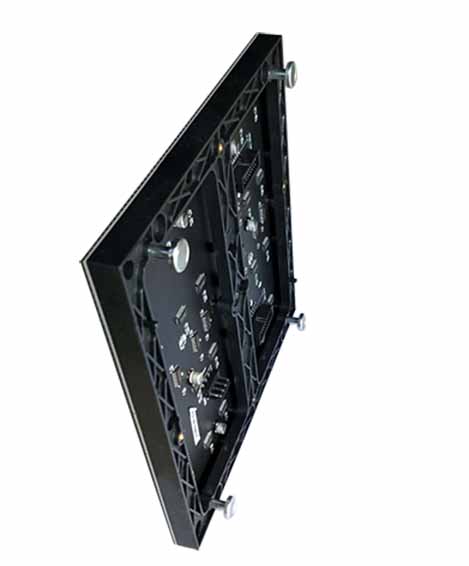

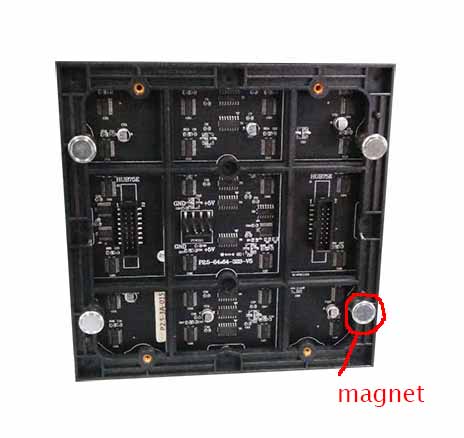

This display screen is sucked on the wall by magnet and unlimited size
