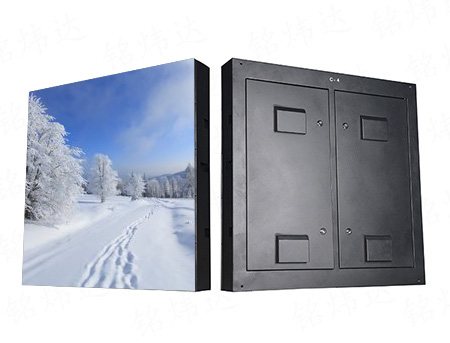

Outdoor Waterproof  box  series
Product parameters
1, high resolution: perfect performance high-definition picture quality and delicate color, and LCD comparable;
2, the quality is exquisite: the use of dynamic scanning technology, the picture is stable, no miscellaneous points, the image effect is clear and delicate, animation effects vivid and diverse, video effects smooth, realistic;
3, the way is flexible: users can arbitrarily display the display mode;
4, wide angle of view: 120 degrees visual angle, horizontal distribution of height and height gap environment is suitable;
5, stable performance: the use of distributed scanning technology and modular design technology, reliability, stability and higher;
6, super long life: the use of high-quality LED components and self-developed circuit board design, to ensure the service life of the product;
7, seamless splicing: splicing error control within plus or minus 0.1mm, easy to install, according to customer demand made arbitrary shape;

Product information

Item P5 P6 P8 P10
Pixel Pitch 5mm 6mm 8mm 10mm
Pixel Configuration 1R1G1B 1R1G2B 1R1G3B 1R1G4B
LED Encapsulation SMD2727 SMD3535 SMD3535 SMD3535
Pixel Density 40000dot/㎡ 27777dot/㎡ 15625dot/㎡ 10000dot/㎡

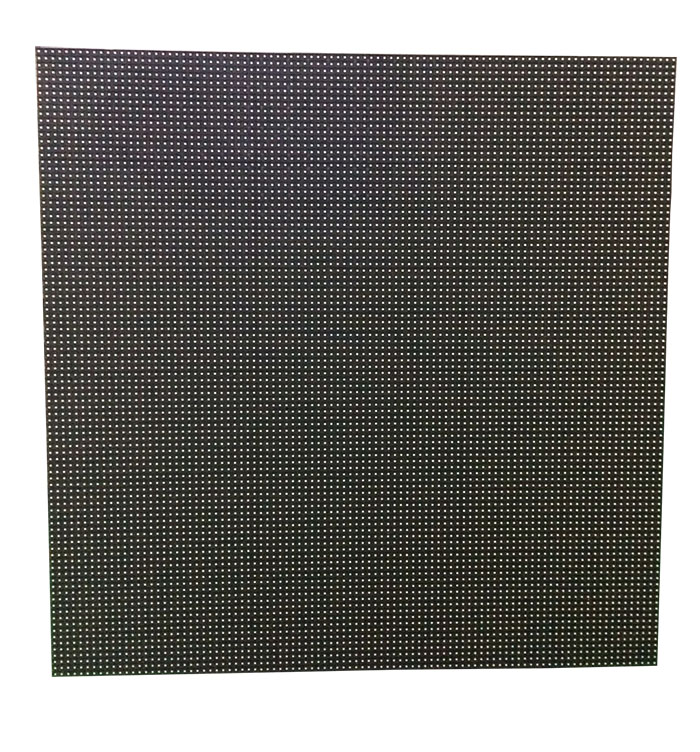

Module Resoulution 32*32(W*H) 32*32(W*H) 32*16(W*H) 32*16(W*H)
Module Size 160mm*160mm(W*H) 192mm*192mm(W*H) 256mm*128mm(W*H) 320mm*160mm(W*H)
Drive Mode 1/8 Scan 1/8 Scan 1/4 Scan 1/4 Scan
Cabinet Resolution 256*128(W*H) 96*96(W*H) 128*96(W*H) 96*96(W*H)

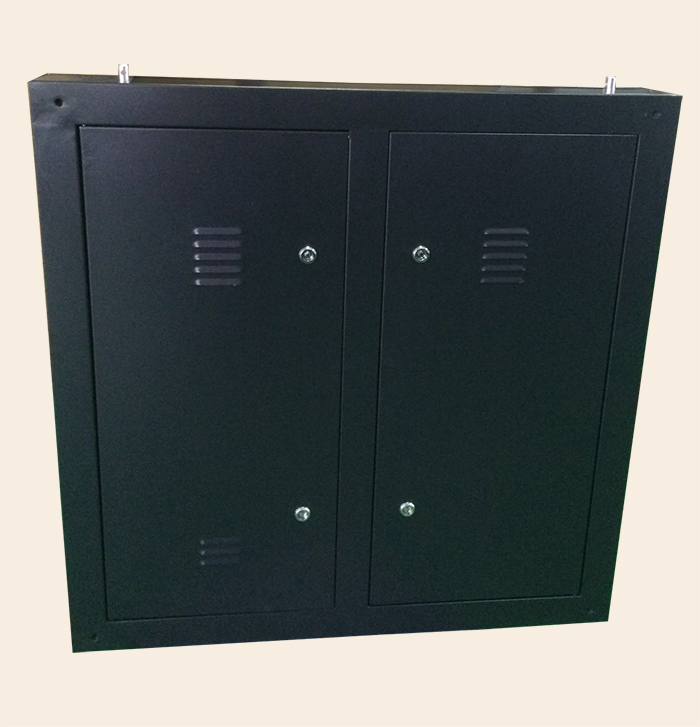

Cabinet Size(W*H) 640mm*640mm 576mm*576mm 1024mm*768mm 960mm*960mm
Cabinet Weight 9±0.5kg 8±0.5kg 50±0.5kg 56±0.5kg
Brightness ≥6000CD/㎡ ≥6000CD/㎡ ≥6000CD/㎡ ≥7500CD/㎡
Color Temperature 3200-9300K/Adjustable 3200-9300K/Adjustable 3200-9300K/Adjustable 3200-9300K/Adjustable
Max Power Consumption 800W/㎡ 800W/㎡ 800W/㎡ 850W/㎡
Average Power Consumption 300W/㎡ 300W/㎡ 300W/㎡ 300W/㎡
Best Viewing Angle H:160°V:160° H:150°V:120° H:150°V:120° H:150°V:120°
Display Mode/Max 1024*768/1280*1024 1024*768/1280*102 1024*768/1280*1024 1024*768/1280*1024
Refresh Rate ≥1200Hz ≥1200Hz ≥1200Hz ≥1200Hz
Best Viewing Distance ≥5m ≥6m ≥8m ≥10m
Protection Level IP65 IP65 IP65 IP65
Maintain Style Maintain Maintain Maintain Maintain
Operating Voltage AC220V/110V AC220V/110V AC220V/110V AC220V/110V
Working Temperature -20℃/+50℃ -20℃/+50℃ -20℃/+50℃ -20℃/+50℃
Operating Humidity 10%-85% 10%-85% 10%-85% 10%-85%

High IP grade and applicable to rainy weather

The protection level can reach up to IP65, and the product is applicable to any rainy weather, thus can be used in outdoor environments.
