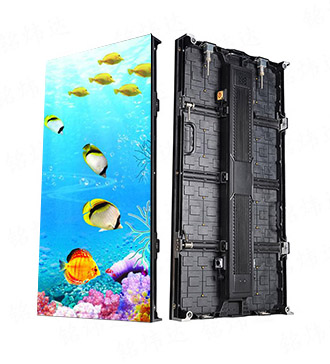

P4.81-INDOOR RENTAL
Product parameters

The LED rental display has the following advantages:

1, ultra light - weight is only 12kg, single can be single handed, easy installation.

2, ultra-thin - the body is made of die cast aluminum, with high strength, high toughness, high precision, and easy to deform.

3, high precision -- the size is precisely machined to 0.1mm.

4, compatible with new structure design to meet hoisting and stacking requirements to meet indoor and outdoor requirements.

5, fast - the upper and lower sides of the box are connected with a fast locking mechanism, and the installation of a box can be completed in 10 seconds, and the installation accuracy is high.

6, reliable - the strength is high, and the heat dissipation is good.

7, cost - light weight, low installation cost, low power consumption, low operation cost and reduced labor cost.

LED rental display screen is light weight, thin structure, hoisting and quick installation, so that it can meet the requirements of rapid installation, disassembly and handling, easy handling, easy operation, full screen loading and unloading by fast bolt fixed and connection, accurate and rapid screen and dismantling, and can spell different shapes to meet site requirements; craft Unique: unique structural design of welding process optimization to avoid frequent failures caused by poor contact points caused by electronic solder joints.

The features of the LED rental screen are as follows:

1, lightweight, ultra-thin, fast installation design, so that you can complete the installation and demolition of the display in a short time.

2, support signal line arbitrary direction, to meet different box arrangement, display, to create different effects of the screen;

3, equipped with professional video processor to support AV, DP, VGA, DVI, YPBPR, HDMI, SDI and other signals.

4, support 256 level brightness adjustment and white balance custom adjustment, so that different batches of display screens can be used together.

5, signal processing: RTF series products use signal folding technology, unit module does not need cascade, greatly improve the performance of product display.

6, mask: the use of patented mask, the mask with the rear fastener fastener assembly way, can be convenient to maintain the LED lamp, the face mask front can not see the fastening screw, the screen surface integrity is good, when the screen lights out of light caused by light leakage of light;

7, module: with a large module, only 4 modules per box, reduce the internal connection and improve the stability of the product. Without opening the box, the display module can be disassembled directly from the rear part of the box.

8, rear cover: remove 4 screws, remove the rear cover, then maintain and replace the power supply and receiving card.

9, the cooling plate: the use of aluminum floor instead of the traditional plastic bottom shell, while ensuring flatness and improving the heat dissipation performance of the products.

10, IC and drive: high refresh frequency, high grayscale high refresh frequency, high grayscale 16384 gradation products using built PWM high-end constant current drive chip. In the case of single receiving cassette load, the refresh frequency of the display screen can reach 960HZ, up to the maximum of the 4800HZ. gray level up to 16bit, the picture is stable, and can easily meet the stage performance, relay and so on. The end application requires the.DC power line to use the American standard wire, the power input adopts the table socket, the power line is not easy to loose, the line loss in the power transmission is the smallest, and the input voltage is stable.

11, Rong: the new structural design meets the requirements of hoisting and stacking, and meets indoor and outdoor requirements. The cabinet is single, multi point spacing is compatible, and indoor outdoor modules are compatible.

12, high: high grayscale high refresh rate design, grayscale level 14 bit, refresh frequency >960Hz;

13, low: excellent heat dissipation design and heat dissipation, can not require external fans, air conditioning, low noise, light weight, low installation cost of the box, low power consumption of box, saving operation cost;

14, equipped with various specifications of the aviation box, convenient for storage and transportation of the box, and played a very good protection role for LED display.

15, customize the most appropriate LED display rental solution according to customer requirements and the environment.

The LED rental screen is widely used in stage leasing, singing and dancing parties, various conferences, exhibitions, stadiums, theatres, auditorium, report hall, multi-function hall, conference room, deductive hall, disco, night club, and high-end entertainment discus.



Product information
Item P4.81
Pixel Pitch 4.81mm
Pixel Configuration 1R1G1B
LED Encapsulation SMD2121/3528
Pixel Density 43264dot/㎡
Module Resoulution 52*52(W*H)
Module Size 250mm*250mm(W*H)
Drive Mode 1/13 Scan
Cabinet Resolution 104*208(W*H)

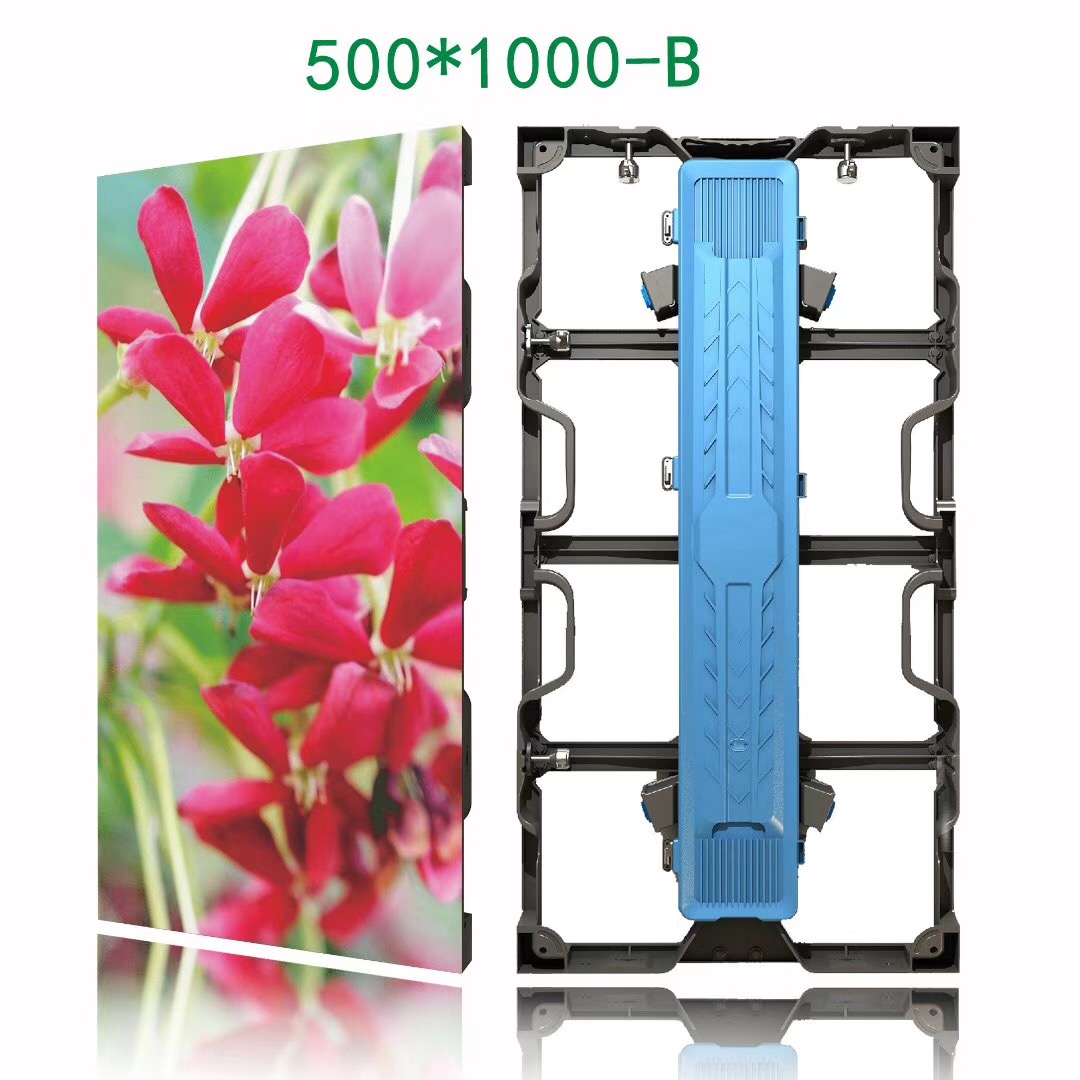

Cabinet Size(W*H*D)/mm 500*1000*66
Cabinet Weight 5.8±0.5kg
Brightness ≥1000CD/㎡
Color Temperature 3200-9300K/Adjustable
Max Power Consumption 750W/㎡
Average Power Consumption 250W/㎡
Viewing Angle H:160°V:160°
Refresh Rate ≥1920Hz
Grey Scale 4k
Best Viewing Distance ≥4m
Protection Level IP31
Maintain Style Maintain
Operating Voltage AC220V/110V
Working Temperature -20℃/+50℃
Operating Humidity 10%-85%
Lifetime 100000H
