Product parameters
|
Project |
P4/P5 |
|
Pixel spacing |
4mm/5mm |
|
Pixel composition |
1R1G1B/1R1G1B |
|
LED encapsulation mode |
SMD2121/3528 |
|
Pixel density |
62500dot/㎡/40000dot/m² |
|
Module resolution |
64*32(W*H)/64*32（W*H） |
|
Module size |
256mm*128mm(W*H)/320mm*160mm(W*H) |
|
Scanning mode |
1/16Scan/1/16Scan |
|
Brightness |
≥1200CD/m²/≥1200CD/m² |
|
Color temperature |
3200-9300K/Adjustaable/3200-9300K/Adjustaable |
|
Maximum power consumption |
750W/㎡/750W/㎡ |
|
Average power consumption |
350W/㎡/250W/㎡ |
|
Angle of view |
H:140°V:140°/H:140°V:140° |
|
Refresh frequency |
≥1920Hz/≥1920Hz |
|
Gray scale |
16bit/16bit |
| Optimum sight distance | ≥4mm/ ≥5mm |
|
Protection level |
IP31/IP31 |
|
Maintenance mode |
Front maintenance/Post maintenance |
|
Working voltage |
AC220V/110V/AC220V/110V |
|
Working temperature |
-20℃/+50℃/-20℃/+50℃ |
|
Working humidity |
20-60/10%-85%/20-60/10%-85% |
|
Typical life value |
100000H/100000H |
|
Software |
Windows XP ,WIN7/8/10 |
|
Application |

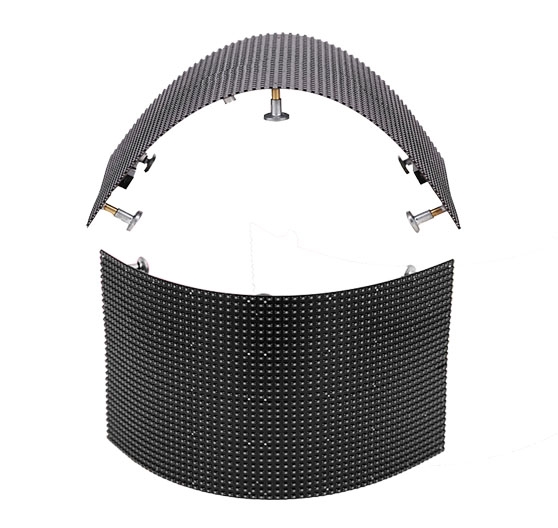

Circular / curved / heterosexual screen |
